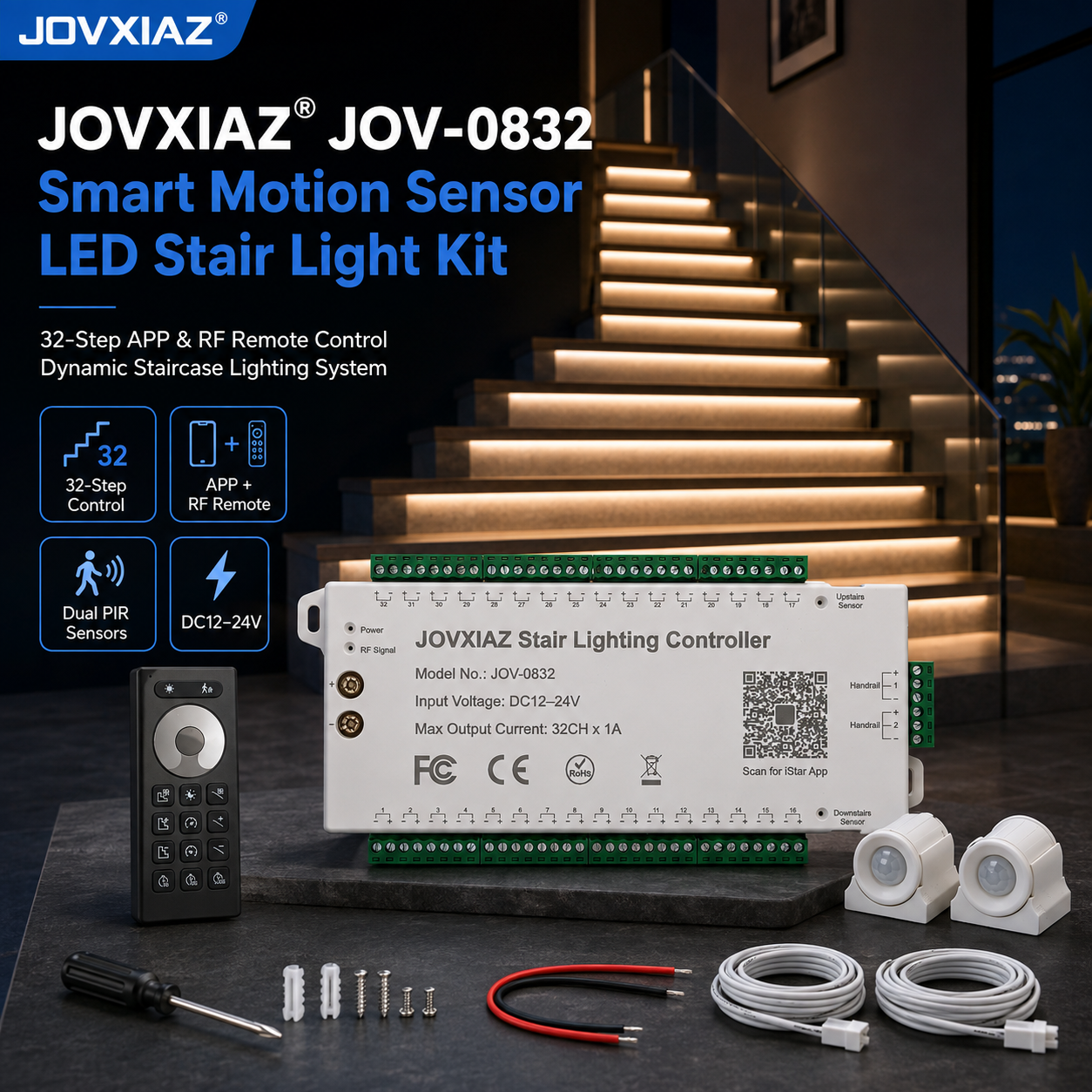

JOVXIAZ® JOV-0832 Premium Smart Motion Sensor LED Stair Light Kit, 32-Step APP & RF Remote Control Dynamic Staircase Lighting System

Transform an ordinary staircase into a smart, automatic lighting system with the JOVXIAZ® JOV-0832 Smart Motion Sensor LED Stair Light Kit.

Built around the JOV-0832 32-channel stair lighting controller, this system combines dual PIR motion sensing, iStar Lighting APP control, and RF remote control to provide intelligent step-by-step staircase illumination.

Install one PIR sensor at the top of the staircase and another at the bottom. When motion is detected, the controller automatically activates the stair lights in the corresponding direction, creating a smooth running or cascading lighting effect. After the selected delay period, the lights automatically turn off.

The JOV-0832 supports up to 32 individually controlled stair channels, making it suitable for everything from compact residential staircases to larger multi-step installations. Brightness, animation speed, delay time, step quantity, lighting modes, and other parameters can be customized from the mobile APP.

For more advanced staircase designs, the controller also provides two dedicated DAT outputs for compatible pixel LED strips, allowing additional handrail or side-lighting effects. (OPTIONAL)

Smart Motion-Activated Stair Lighting

Dual PIR motion sensors monitor both ends of the staircase.

When someone approaches from the bottom, the lighting sequence runs upward. When motion is detected from the top, the lighting sequence runs downward. This directional activation provides convenient nighttime illumination without requiring a traditional wall switch.

The motion-sensing function can also be enabled or disabled depending on how you want the staircase lighting to operate.

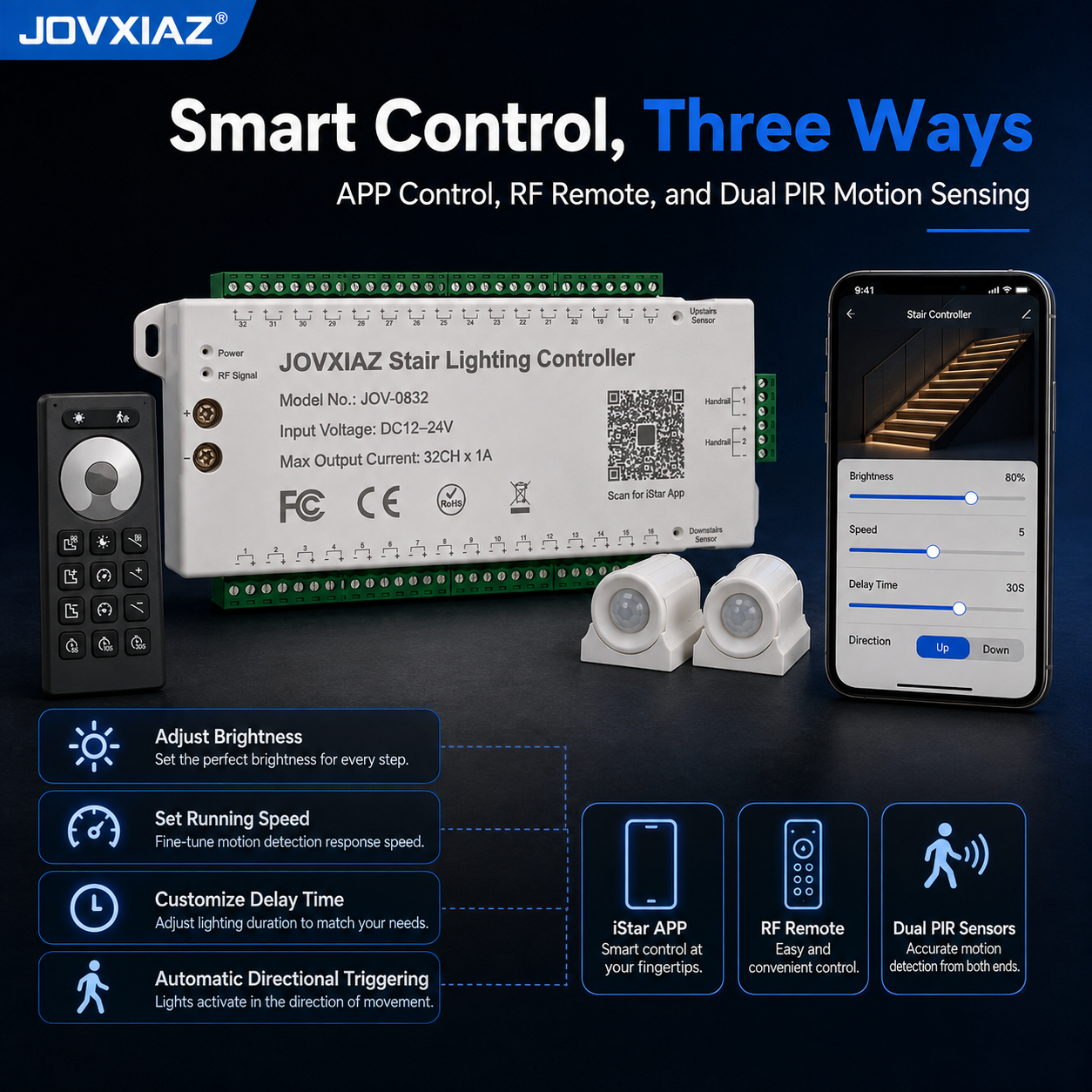

Three Convenient Control Methods

The JOVXIAZ® JOV-0832 gives you multiple ways to manage your staircase lighting:

iStar Lighting APP Control
Configure the system directly from your smartphone. Adjust the number of stairs, brightness, running speed, delay time, lighting effects, pixel-strip settings, and scheduled operation.

RF Remote Control
Quickly access frequently used functions without opening the APP. Adjust brightness, speed, stair quantity, delay settings, motion mode, pixel functions, and always-on lighting.

Dual PIR Motion Sensor Control
Automatically activate the staircase lights whenever motion is detected at either end of the stairs.

Key Features

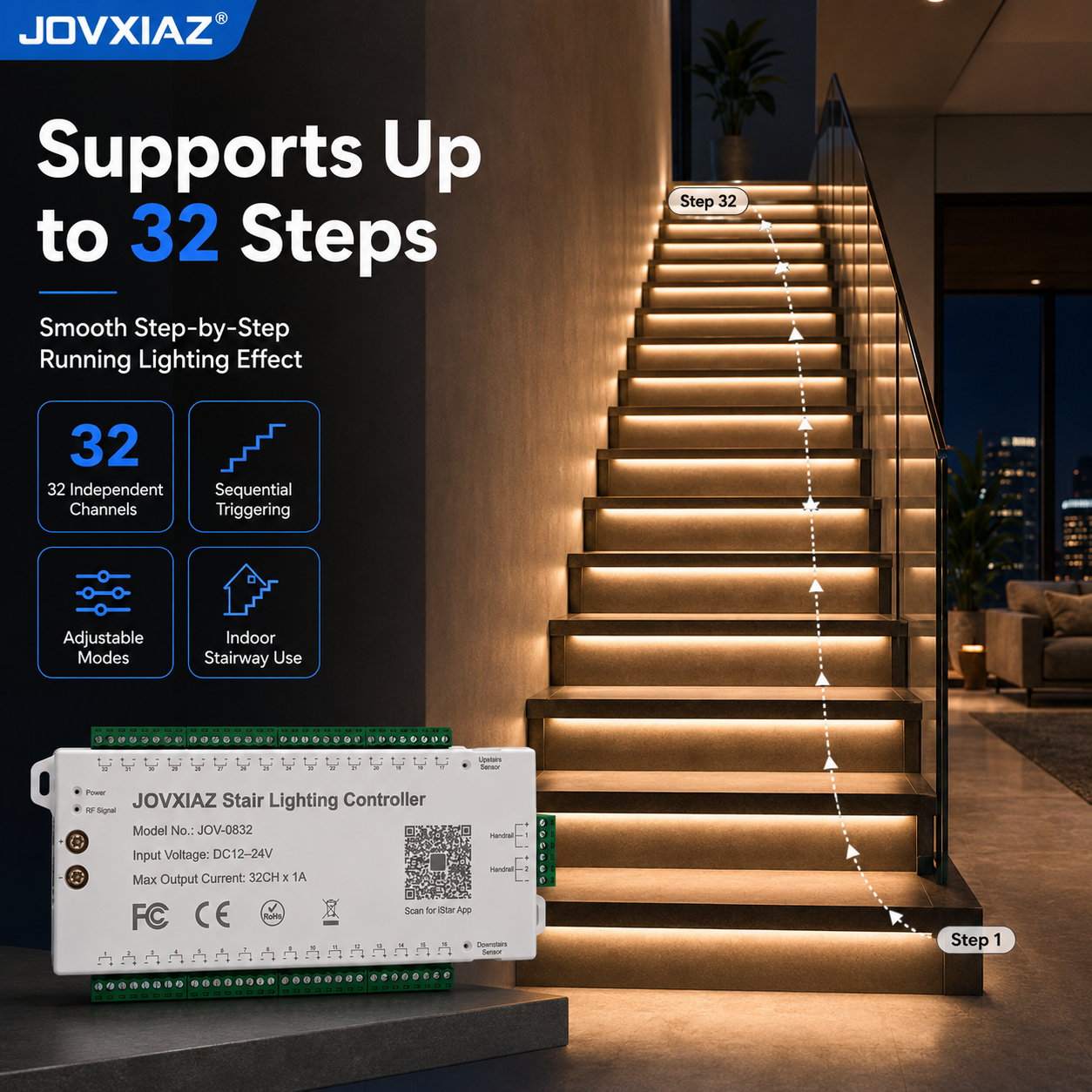

Up to 32 Individually Controlled Stair Steps
The JOV-0832 provides 32 independent stair-light output channels for creating smooth step-by-step illumination across staircases of different sizes.

Automatic Upstairs & Downstairs Motion Detection
Two PIR sensors can be installed at opposite ends of the staircase. The controller determines the direction of travel and activates the lighting sequence accordingly.

Smart APP Control
Use the iStar Lighting APP to configure step quantity, animation speed, delay time, brightness and lighting modes directly from your smartphone.

RF Remote Control Included
Control commonly used lighting functions without a phone. The remote provides quick access to motion sensing, always-on lighting, brightness, speed, delay and other settings.

Adjustable Brightness from 1%–100%
Fine-tune your stair lighting from subtle nighttime illumination to full brightness according to the installation environment.

Adjustable Running Speed & Delay Time
Customize how quickly the lights illuminate from step to step and how long they remain on after activation.

Dynamic Step-by-Step Lighting Effects
Create smooth cascading and running-flow illumination instead of switching all staircase lights on simultaneously.

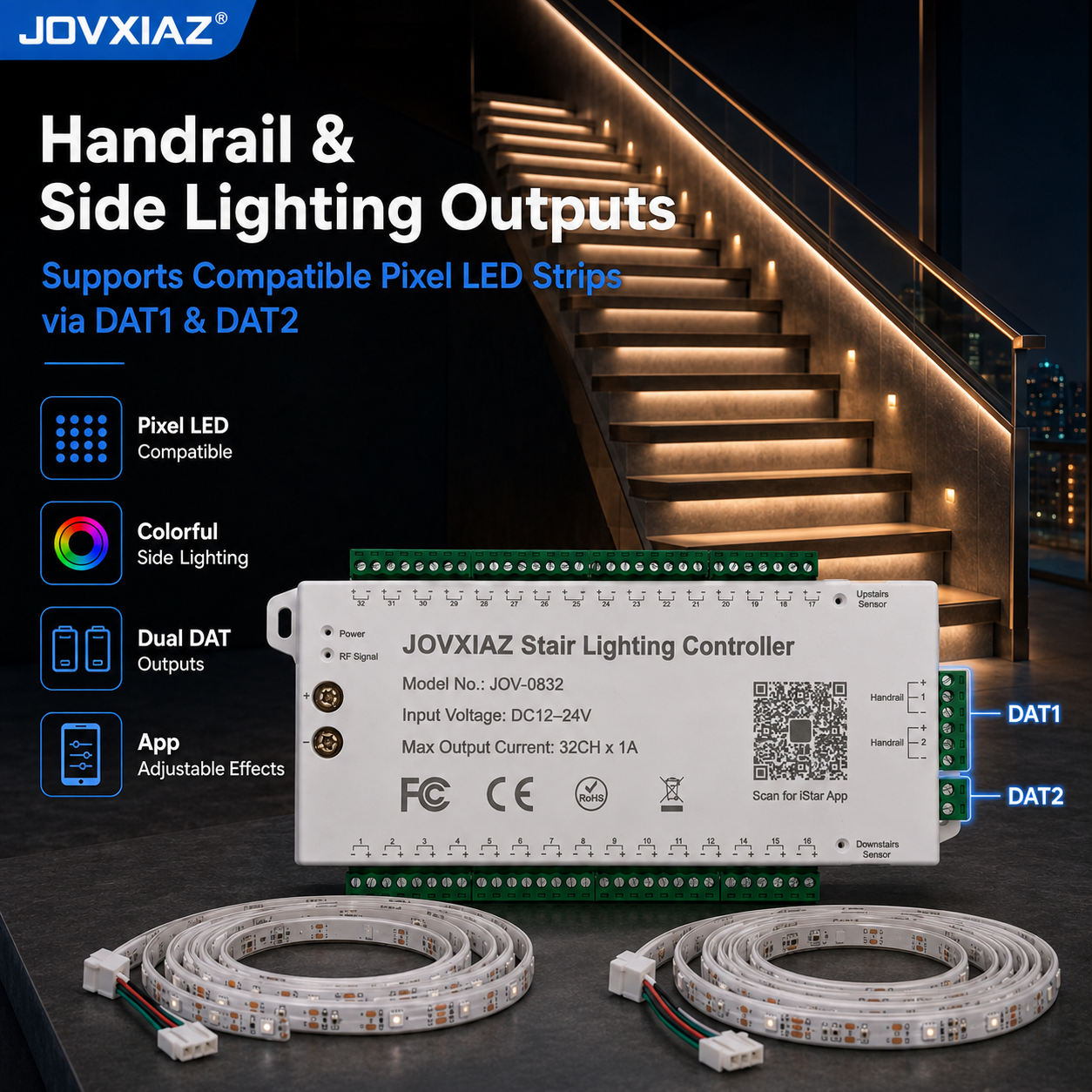

Dual Pixel LED Strip Outputs (OPTIONAL)
Two additional DAT1 / DAT2 outputs support compatible pixel LED strips for handrail or staircase side lighting, expanding the system beyond standard single-color step lights.

Pixel Lighting Customization
Compatible pixel strips can be configured for pixel quantity, brightness, color calibration, solid-color lighting and multicolor dynamic effects through the APP.

Scheduled Operation
Use the APP's timed-work function to configure when the stair lighting system operates, with additional slow-start and slow-end functionality available.

DC12–24V Low-Voltage System
The JOV-0832 operates with a DC12–24V power supply, making it suitable for low-voltage indoor staircase lighting installations.

How It Works

1. Motion is detected
The upstairs or downstairs PIR sensor detects someone approaching the staircase.

2. The controller determines direction
The JOV-0832 identifies whether activation came from the upper or lower sensor.

3. Stair lights illuminate sequentially
Each connected step activates in sequence, producing a smooth running-light effect.

4. Lights remain on for the selected delay
The user-defined delay allows sufficient time to finish walking up or down the stairs.

5. Lights automatically switch off
After the delay expires, the staircase returns to standby mode until motion is detected again.

JOV-0832 Controller Specifications

Ideal Applications

The JOVXIAZ® JOV-0832 system is suitable for wooden stairs, floating stairs, open-riser stairs, closed-riser staircases, straight staircases, residential stairways, basement stairs, hallway stairs and other indoor architectural staircase-lighting projects.

It is particularly suitable for installations where you want automatic step-by-step illumination instead of conventional all-on/all-off staircase lighting.

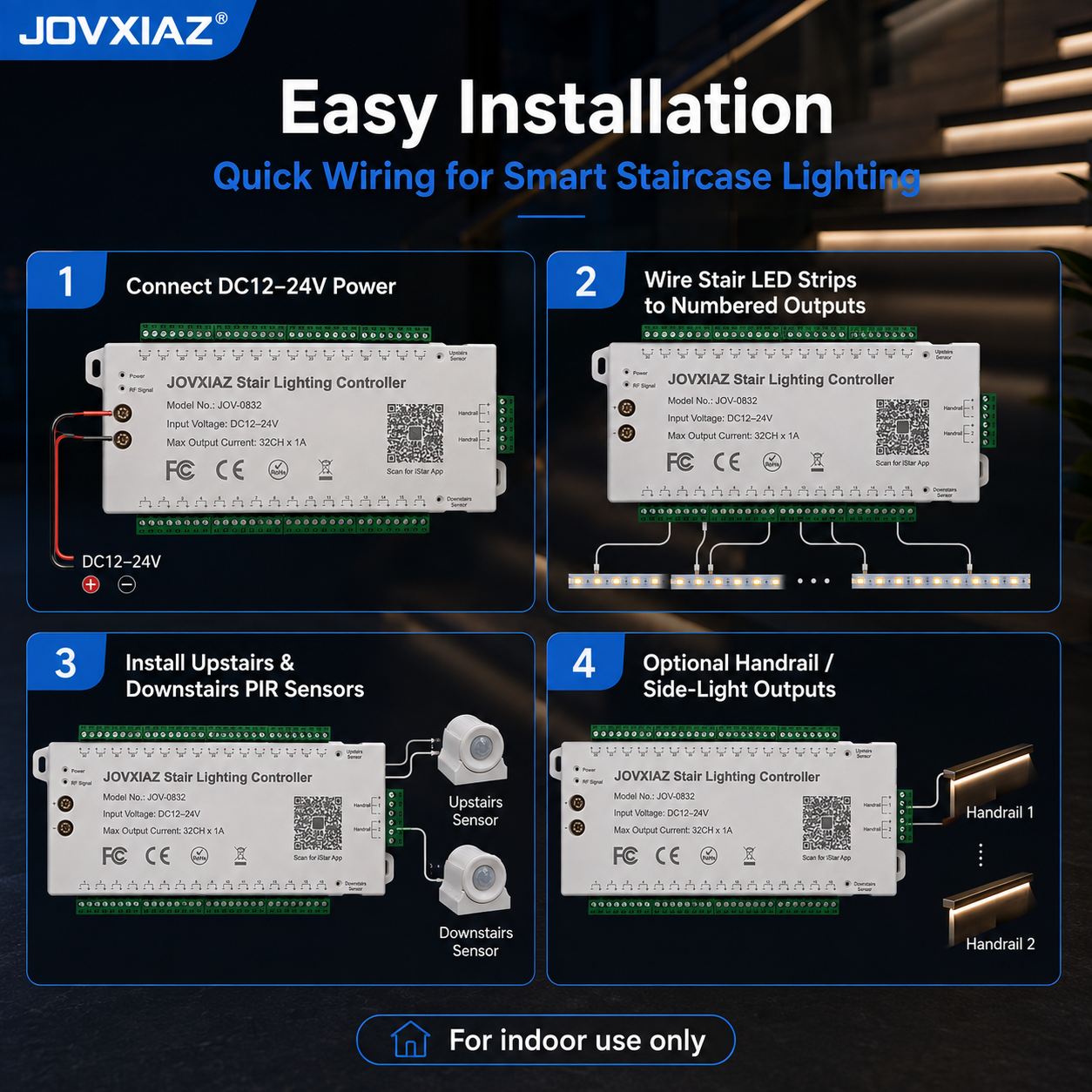

Important Installation Notes

Use a suitable DC12–24V power supply and maintain the correct positive and negative polarity when connecting each stair-light channel.

Install one PIR sensor near the top of the staircase and the other near the bottom of the staircase where approaching movement can be detected reliably.

The controller is intended for indoor use only. Do not install it in damp or wet locations, and disconnect power before wiring or servicing the system.
